SKU:RD-000017
Dell R740 Server HBA330 Mini Mono 12Gb/s SATA/SAS RAID Controller 0P2R3R P2R3R
Couldn't load pickup availability
-
Vendor:
Dell
-
Type:
RAID Controllers



- Description

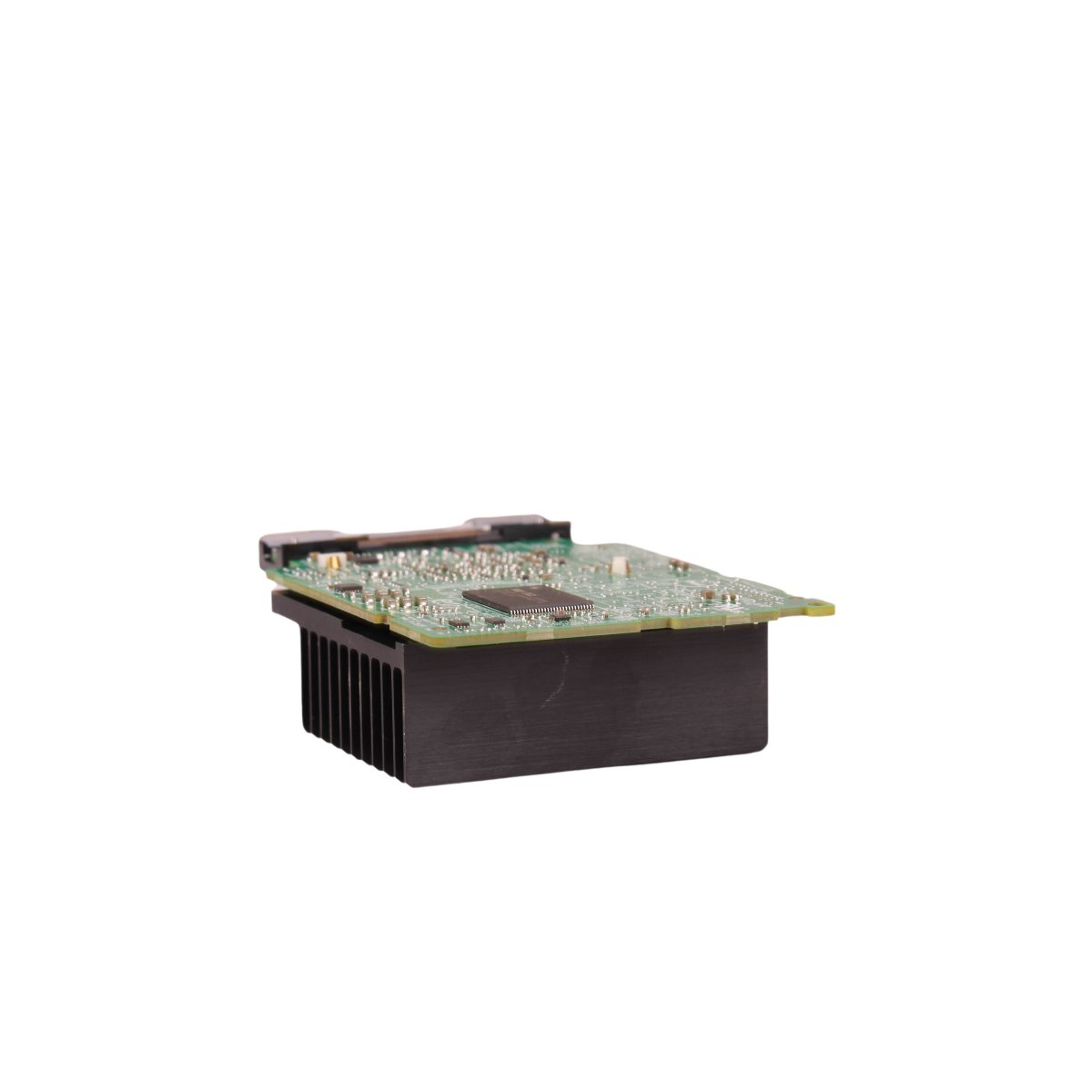

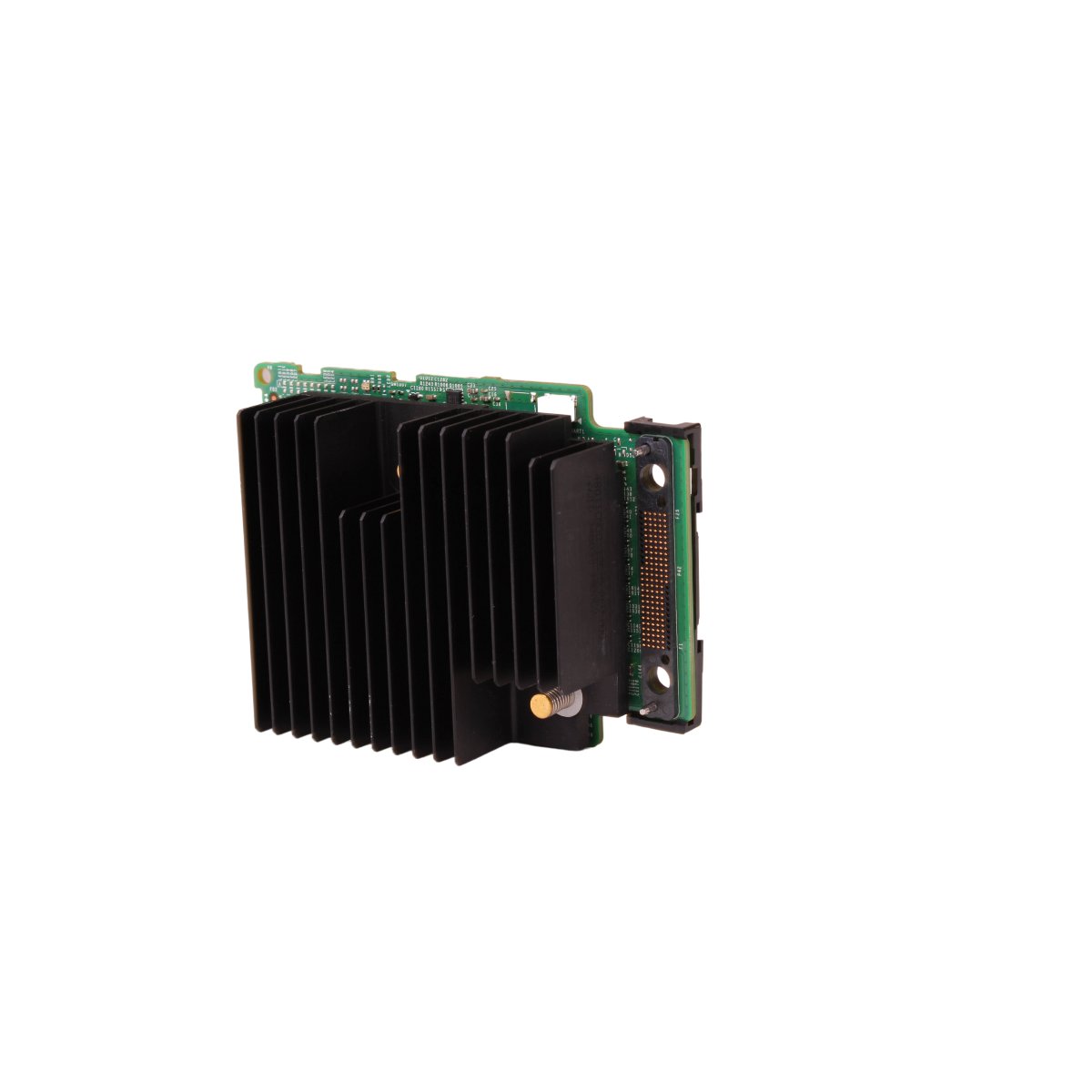

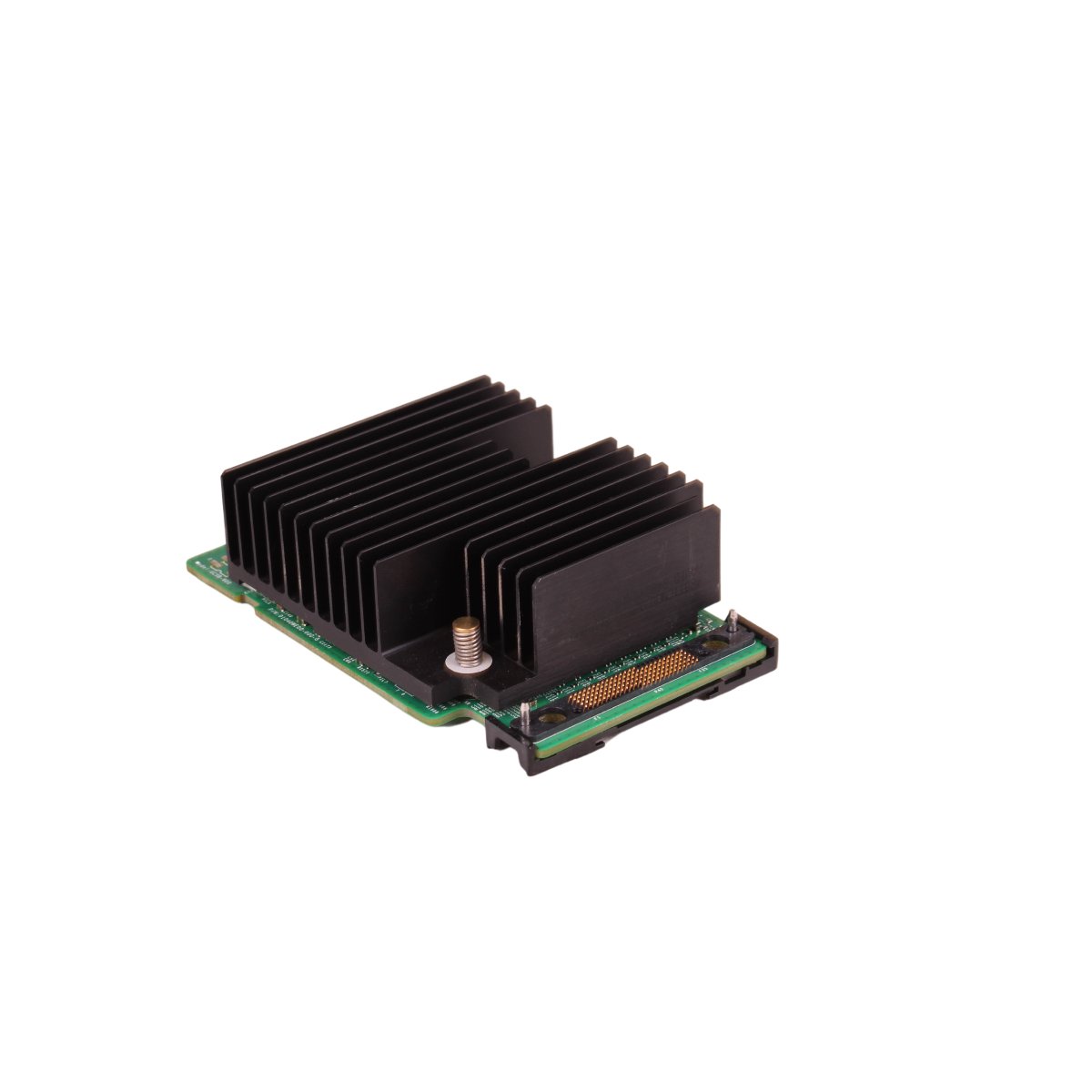

Dell R740 Server HBA330 Mini Mono 12Gb/s SATA/SAS RAID Controller 0P2R3R P2R3R
Dell R740 Server HBA330 Mini Mono 12Gb/s SATA/SAS RAID Controller (0P2R3R P2R3R)
The Dell R740 HBA330 Mini Mono 12Gb/s SATA/SAS RAID Controller (0P2R3R P2R3R) is a high-performance Host Bus Adapter designed to deliver reliable and efficient connectivity for Dell PowerEdge servers. Engineered for environments that demand robust data transfer capabilities and flexibility, this controller supports both 12Gb/s SAS and 6Gb/s SATA drives, making it ideal for direct-attached storage (DAS) applications, large data workloads, and virtualized environments.
Specifications Chart
Component | Specification |
---|---|
Model Name | Dell R740 HBA330 Mini Mono 12Gb/s SATA/SAS RAID Controller |
Part Number | 0P2R3R P2R3R |
Interface | Mini Mono Interface |
Data Transfer Rate | 12Gb/s SAS / 6Gb/s SATA |
Cache | No Cache |
Port Configuration | Dual-Port SAS/SATA |
RAID Support | Pass-Through / HBA Mode (No Hardware RAID levels) |
Compatibility Dell Systems | - Dell EMC PowerEdge R740 - Dell EMC PowerEdge R740XD2 - Dell EMC PowerEdge C6420 (C6400) |
Performance Benefits | High-speed data access, low latency, optimized for software RAID or HBA mode |
Ideal Use Case | Software-defined storage, virtualization, and environments requiring direct disk access |
Contact our experts today for more information or to customize your storage solution for optimal performance!
Condition: Refurbished
Shipping Speed:
- Ships in 1-3 Days
