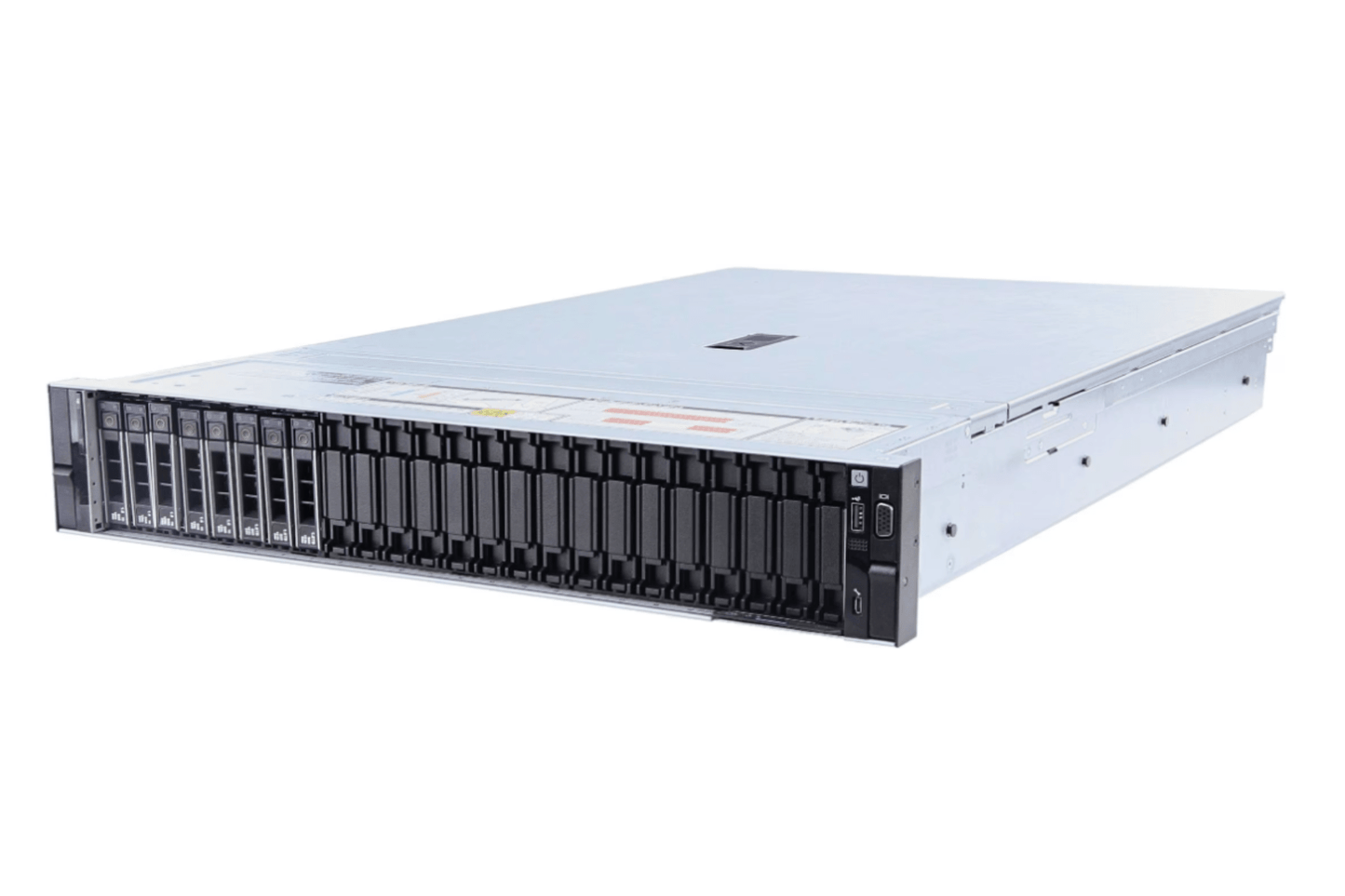

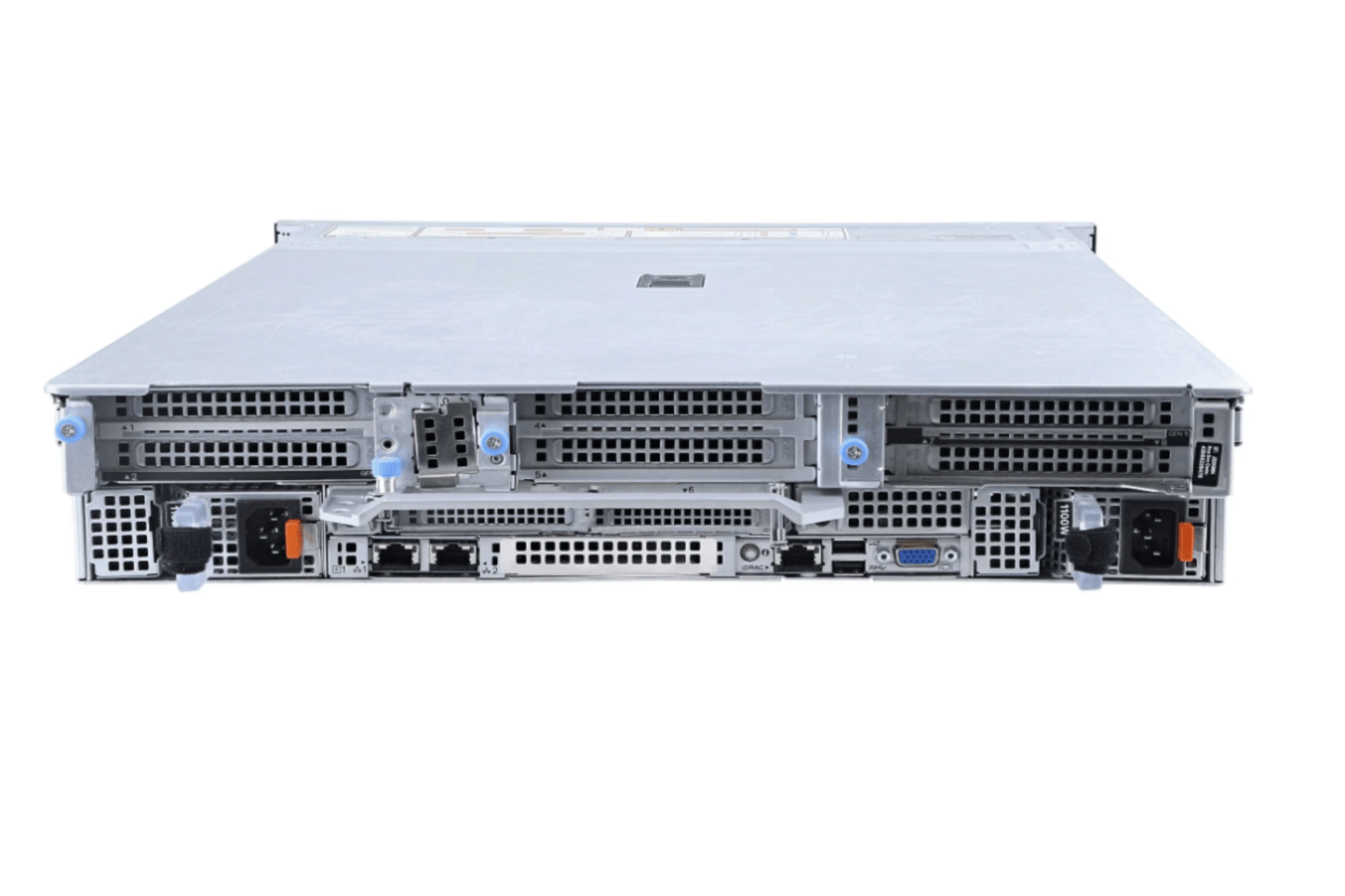

Dell PowerEdge R760 – 2x Intel Xeon Gold 6430 | 64 Cores | 256GB DDR5 RAM | 24x 30TB U.2 NVMe SSDs | 24-Bay 2.5"

Dell PowerEdge R760 – 2x Intel Xeon Gold 6430 | 64 Cores | 256GB DDR5 RAM | 24x 30TB U.2 NVMe SSDs | 24-Bay 2.5"

Experience the cutting edge of enterprise server performance with the Dell PowerEdge R760, fully loaded with 24x 30TB U.2 NVMe SSDs for an unparalleled 720TB of ultra-fast storage. Designed to power through data-intensive workloads, virtualization, AI inference, and edge analytics, this server is engineered for maximum throughput, efficiency, and scalability.

Powered by dual Intel Xeon Gold 6430 processors, the system delivers 64 physical cores and 128 threads, with up to 4.1GHz turbo frequency, making it a powerhouse for multitasking and concurrent processes across large datasets.

With 256GB of blazing-fast DDR5 ECC Registered RAM at 4800MT/s, your applications will benefit from higher bandwidth and reduced latency, ensuring rapid access to data even under peak usage.

This high-density 2U chassis supports 24 front-accessible 2.5" U.2 NVMe drives, making it ideal for demanding applications that require both high capacity and low-latency storage performance, such as high-performance computing (HPC), big data analytics, or large-scale VMs.

Technical Specifications

• Model: Dell PowerEdge R760 – 24-Bay 2.5” NVMe Chassis

• Processors: 2x Intel Xeon Gold 6430 (32 Cores / 64 Threads each, 2.1GHz Base, up to 4.1GHz Turbo)

• Total Cores / Threads: 64 Cores / 128 Threads

• Memory: 256GB DDR5 ECC Registered RAM (4800MT/s), scalable up to 8TB

• Storage:

  • 24x 30TB U.2 NVMe Enterprise SSDs (720TB Total Raw Storage)

  • PCIe Gen4 interface for maximum read/write performance

• Drive Bays:

  • 24x 2.5” Front-Accessible NVMe (Hot-Swap)

• RAID Controller: Dell PERC H755N NVMe Hardware RAID (RAID 0, 1, 10, 5)

• Networking: Broadcom 5720 Dual Port 1GbE LOM

• Expansion Slots: Multiple PCIe Gen5 slots for GPUs, NICs, or accelerators

• Power Supply: 1400W Dual Hot-Plug Redundant Power Supply (1+1)

• Remote Management: Integrated iDRAC9 Enterprise with Lifecycle Controller

• Form Factor: 2U Rackmount

Recommended Workloads

• High-Frequency Trading & Financial Analytics

• Artificial Intelligence & Machine Learning

• Real-Time Big Data Processing

• Enterprise Virtualization & High-Performance VM Hosting

• 4K/8K Video Editing & Media Archives

• Software-Defined Storage Platforms

The Dell PowerEdge R760 24-Bay NVMe system combines maximum compute density with unmatched storage speed and capacity, making it the ideal solution for mission-critical applications that can’t afford compromise.

Condition: New
