Dell PowerEdge R430 8-Bay | 2x Intel E5-2640V3 | 16 CPU Cores | 64GB RAM | 2x 1.2TB SAS | PERC H330

Dell PowerEdge R430 8-Bay | 2x Intel E5-2640V3 | 16 CPU Cores | 64GB RAM | 2x 1.2TB SAS | PERC H330

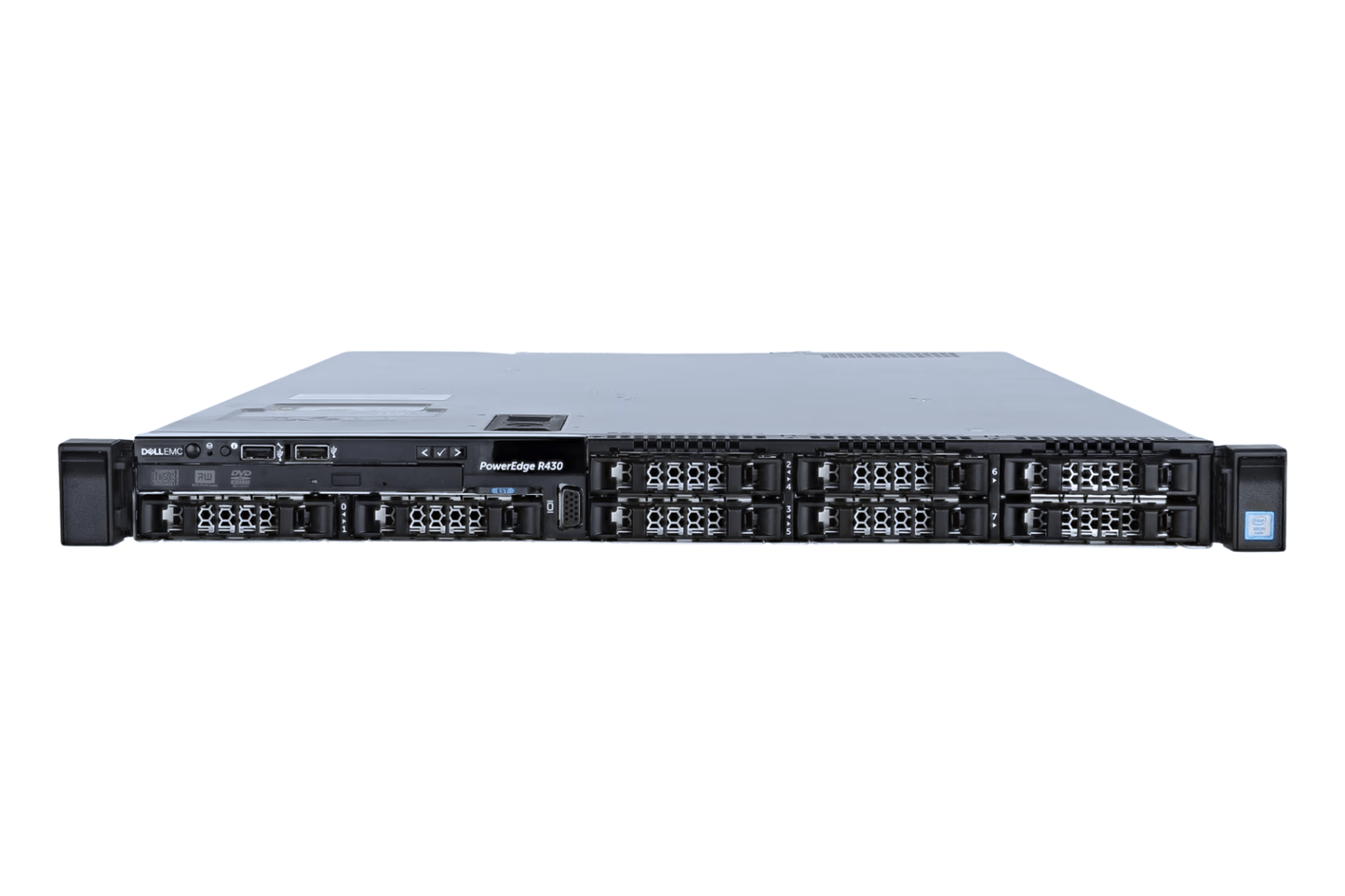

Dell PowerEdge R430 8-Bay Rack Server
Configuration:

• Processors: 2 × Intel Xeon E5-2640 v3 (8 cores, 16 threads each, 2.6 GHz base clock, 3.4 GHz turbo, 20MB L3 cache, 85W TDP)

• Total CPU Cores/Threads: 16 cores / 32 threads

• Memory: 64GB DDR4 ECC Registered (RDIMM), expandable up to 384GB (12 DIMM slots)

• Storage: 2 × 1.2TB 10K RPM SAS 2.5-inch enterprise hard drives, hot-swappable

• Drive Bays: 8 × 2.5-inch hot-swap bays (6 empty for expansion)

• RAID Controller: Dell PERC H330 hardware RAID (RAID 0, 1, 5, 10, 50) with 12Gb/s SAS support

• Network Interfaces: 2 × Gigabit Ethernet ports (Broadcom 5720)

• Expansion Slots: PCIe 3.0 (varies by riser configuration; typically 2–3 slots)

• Power Supplies: Dual redundant hot-plug 550W PSU units for high availability

• Form Factor: 1U rackmount server

• Management: iDRAC8 with Lifecycle Controller for remote server management and monitoring

Performance & Use Cases:
The Dell PowerEdge R430 is a high-density, performance-optimized rack server designed for data centers, virtualization, database hosting, and business applications requiring balanced processing power and storage flexibility. Dual Intel Xeon E5-2640 v3 CPUs provide 16 physical cores (32 threads) of compute power, while the 64GB ECC DDR4 memory ensures stability and performance in demanding workloads. The 8-bay chassis offers scalability for additional drives, supporting both SAS and SATA, making it suitable for environments requiring high availability and redundancy.

The PERC H330 hardware RAID controller delivers dependable data protection and performance tuning options, supporting up to RAID 50 for a balance of speed and fault tolerance. With dual redundant power supplies, the R430 offers robust uptime protection for mission-critical operations.

Ideal for:

• Virtualization hosts (VMware, Hyper-V, Proxmox)

• File, database, and application servers

• High-performance computing (HPC) clusters

• Web hosting environments

• Backup and disaster recovery solutions

Condition: Refurbished

Shipping Speed:

• Typically Ships in 1-3 Days
