When it comes to selecting enterprise hardware, one of the biggest decisions is whether your workloads require a 2-CPU server or a 4-CPU server. Both configurations have their place in modern data centers, but the differences in performance, scalability, and cost can significantly impact your IT strategy.

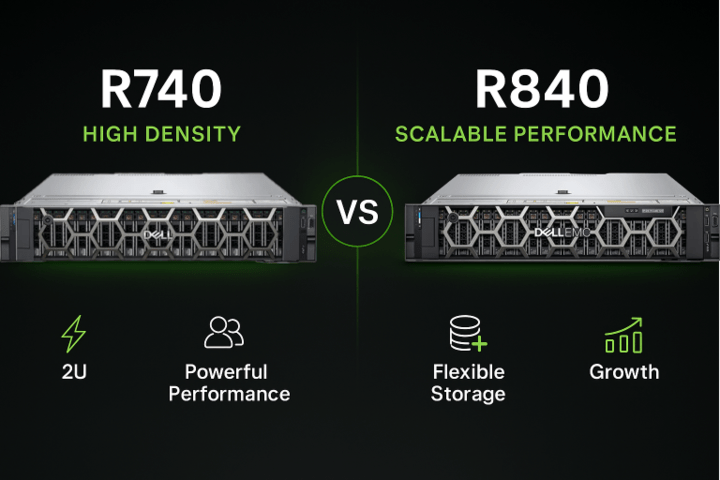

Let’s break down why businesses might choose a 4-socket server like the Dell PowerEdge R840 instead of a 2-socket server like the Dell PowerEdge R740.
Performance and Compute Density
-
2-CPU Servers (Dell R740):
With dual Intel Xeon processors, the R740 offers strong performance for virtualization, medium-to-large databases, and general enterprise applications. It delivers excellent value for workloads that don’t require extreme parallelism or massive memory footprints. -
4-CPU Servers (Dell R840):
The R840 doubles the processor sockets, supporting up to four Intel Xeon Scalable CPUs in a single 2U chassis. This means significantly higher core counts (up to 112 cores with certain CPUs), higher memory bandwidth, and superior multitasking capabilities. For compute-heavy applications, the performance leap is dramatic.
Memory Capacity and Bandwidth
-
Dell R740 (2 CPUs):
Supports up to 3TB of RAM, which is substantial for most mid-to-large workloads. -
Dell R840 (4 CPUs):
Scales up to 6TB of RAM across its four processors, making it ideal for memory-hungry workloads like in-memory databases (SAP HANA), advanced analytics, AI/ML training, and high-performance computing.
Workload Fit
-
When a 2-CPU Server Makes Sense:
-
Virtual machines and VDI environments
-
Medium-sized databases
-
Web hosting and general enterprise apps
-
Organizations balancing performance with budget
-
-
When a 4-CPU Server Makes Sense:
-
Mission-critical workloads requiring maximum uptime and performance
-
Large-scale virtualization with high VM density
-
In-memory and real-time analytics platforms
-
High-performance computing (HPC), AI, and machine learning
-
Businesses that need to consolidate multiple 2-CPU servers into fewer, more powerful machines
-
Dell PowerEdge R740 vs Dell PowerEdge R840: Key Differences
| Feature | Dell PowerEdge R740 (2-CPU) | Dell PowerEdge R840 (4-CPU) |
|---|---|---|
| Form Factor | 2U Rack | 2U Rack |
| Processor Support | Up to 2x Intel Xeon Scalable | Up to 4x Intel Xeon Scalable |
| Max CPU Cores | ~56 cores (depending on CPUs) | ~112 cores (depending on CPUs) |
| Memory Capacity | Up to 3TB DDR4 ECC | Up to 6TB DDR4 ECC |
| Drive Bays | Up to 16 x 2.5" or 8 x 3.5" | Up to 24 x 2.5" or 8 x 2.5" |
| Ideal Workloads | Virtualization, medium databases, enterprise apps | In-memory databases, analytics, AI/ML, HPC |
| Scalability | High | Extreme |
| Cost | More affordable, efficient | Higher upfront, long-term savings through consolidation |
Cost and Efficiency Considerations
While 2-CPU servers like the Dell R740 are more affordable and energy-efficient, 4-CPU servers like the Dell R840 provide higher consolidation, reducing the need for additional hardware, rack space, and licensing costs per server. In some cases, one R840 can replace two or three R740s, offering long-term savings despite higher upfront costs.
Final Thoughts
Choosing between a 2-CPU server and a 4-CPU server depends on your organization’s workload requirements. If you’re running traditional enterprise applications or virtualization at scale, the Dell PowerEdge R740 is often the smarter choice.
But if your business needs maximum compute density, massive memory capacity, and mission-critical reliability, the Dell PowerEdge R840 is built for the job. For enterprises running AI, analytics, and large databases, moving to a 4-CPU server unlocks capabilities that 2-CPU servers simply can’t match.
